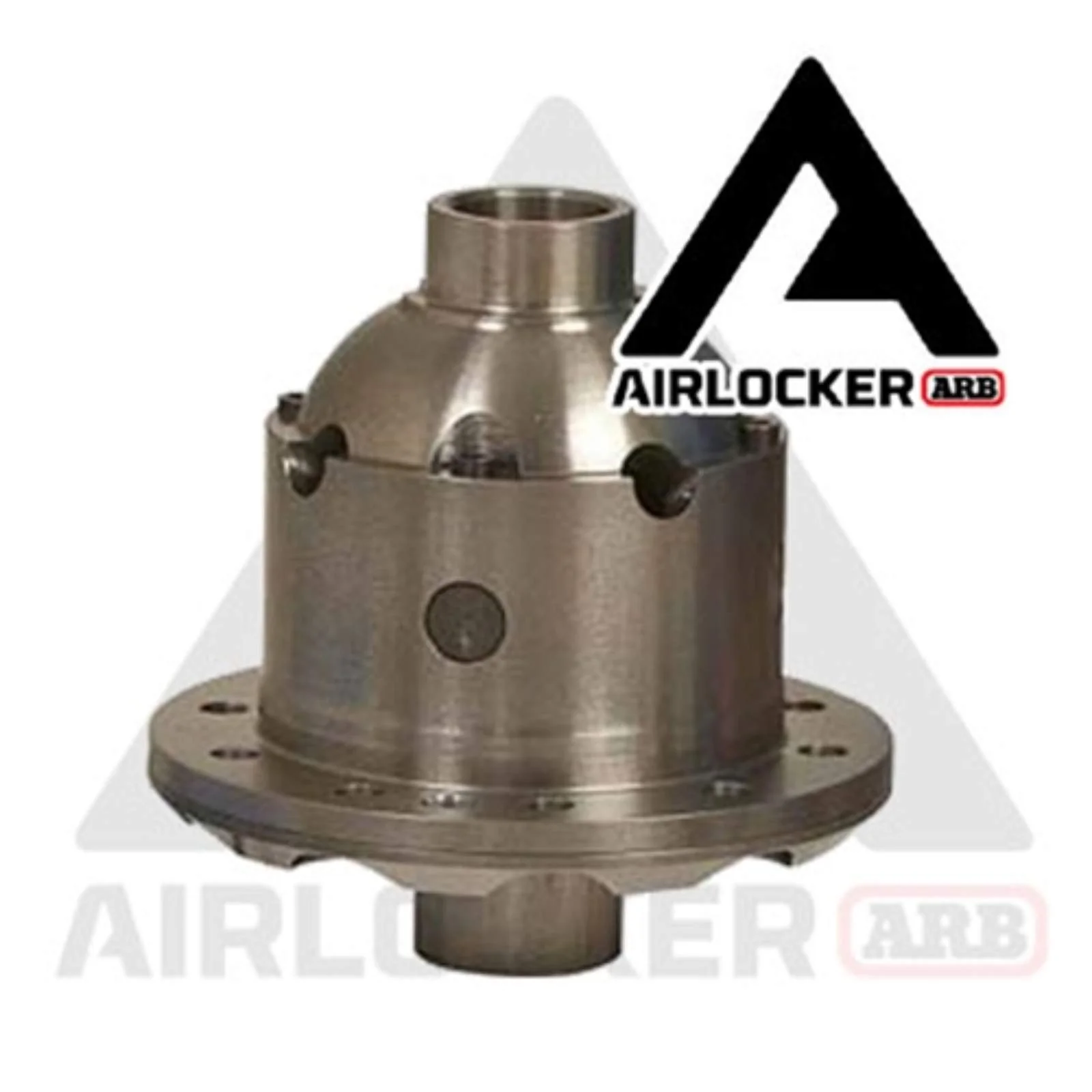

RD100, Dana 30, 3.73 & Up, 27 Spline, ARB Air Locker

Dana Spicer Model 30

ARB RD100 Air Locker

Fits:
1966-1971 Ford Bronco
1971-1983 Jeep CJ5
1970-1975 Jeep CJ6
1976-1986 Jeep CJ7
1982-1986 Jeep CJ8 Scrambler
1986-1992 Jeep Comanche MJ
1984-2001 Jeep Cherokee XJ
1993-1998 Jeep Grand Cherokee ZJ
1999-2004 Jeep Grand Cherokee WJ
1987-1995 Jeep Wrangler YJ
1997-2006 Jeep Wrangler TJ
2004-2006 Jeep Wrangler LJ Unlimited
2007-2018 Jeep Wrangler JK (2 Door) Non-Rubicon
2007-2018 Jeep Wrangler JK Unlimited (4 Door) Non-Rubicon
2018+ Jeep Wrangler JL Non Rubicon
1967-1970 International Scout
1971-1977 International Scout II

Differential:	Dana 30
Gear Ratio:	3.73-5.38
Axle Splines:	27
Ring Gear Bolts:	10 (not included)
Manufacturer:	ARB
Warranty:	5 Years

Required Parts:
These parts are required for installing this product on your vehicle.
CKSA12 air compressor (extremely compact, operates up to 2 air lockers, not intended for oversized tire inflation) or
CKMA12 air compressor (compact, operates up to 2 air lockers and will inflate tires when paired with a 171302) or
CKMTA12 air compressor (still compact, operates up to 2 air lockers when paired with 171503, will inflate tires AND run air tools when paired with a 171302 and will run even faster when paired with a171501 air tank

Optional Parts:
These parts are not required for installing this product on your vehicle.
ALSB3 - bracket for mounting three (3) rocker switches. Manufactured from steel and powder-coated black. (Suitable for moutning both a front and rear air locker and a compressor switch.)

Upgrade Options: RD104 30 spline ARB locker and 30 spline Nitro axle kit for Jeep TJ, XJ, MJ, ZJ YJ

"With our improved two piece design available right across the range, along with the addition of forged gears and an industry leading five year warranty, ARB Air Lockers are now better built and better backed than ever before.

Created to provide 100% traction on demand, without sacrificing any of your vehicle's highway driving performance, ARB Air Lockers employ a 12 volt ARB Air Compressor designed to activate (and deactivate) a solid and durable locking mechanism inside the differential. This gives you the traction you need, when you need it, all at the flip of a switch and all within the comfort of the driver's seat.

The advantage of the ARB Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates just like a conventional 'open' differential.

In addition to providing outright improvements to a 4x4's off road capabilities, the Air Locker offers significant environmental benefits. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact."
